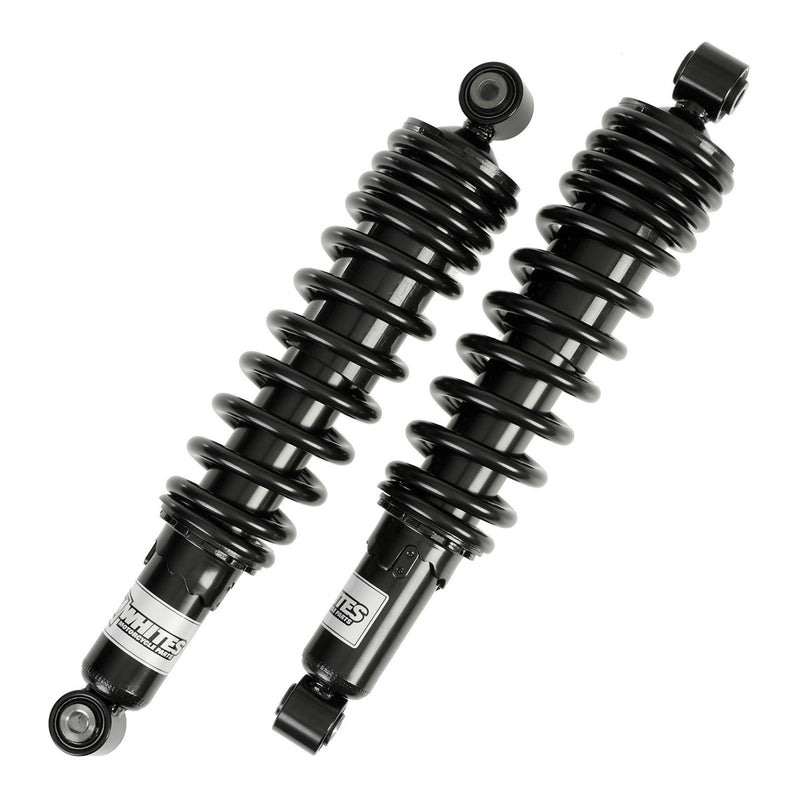

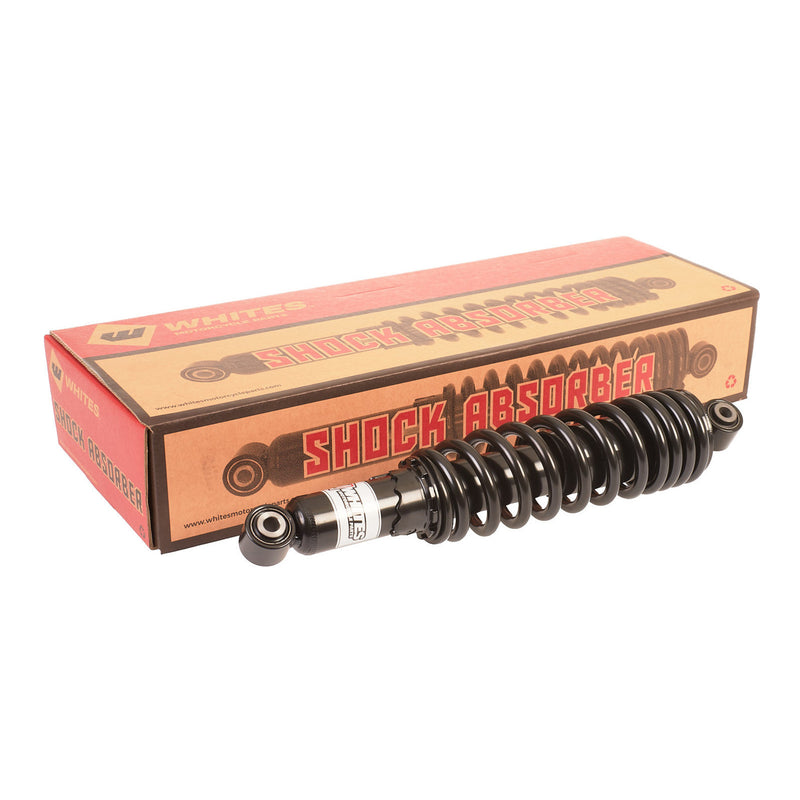

Whites' extensive range of ATV shocks are perfect for servicing your four-wheeled machine, ATVs work and play in the harshest environments.
Sold in pairs and available for both the front and rear of most common ATVs. Manufactured with a steel construction for exceptional strength and durability your new shock will last the distance, while the upgraded damping provides a comfortable ride.
Features:
- Fits 09-14 Yamaha Grizzly 550 - Front, 07-13 Yamaha Grizzly 700 - Front
- Steel construction shock body.
- Upgraded damping provides an extra comfortable ride.
- Replaces OEM Part: 3B4-23350-01-00, 3B4-23350-00-00, 1HP-F3350-00-00, 28P-23350-00-00
- Sold as a pair.
Dimensions:
- Extended Length: 360mm
- Compressed Length: 283mm
- Top Eyelet: 10x32mm
- Bottom Eyelet: 10x30mm
- Shaft OD: 12.5mm
- Damper Diameter: 38mm
- Spring OD: 62.6mm
- Spring Diameter: 8.9mm
