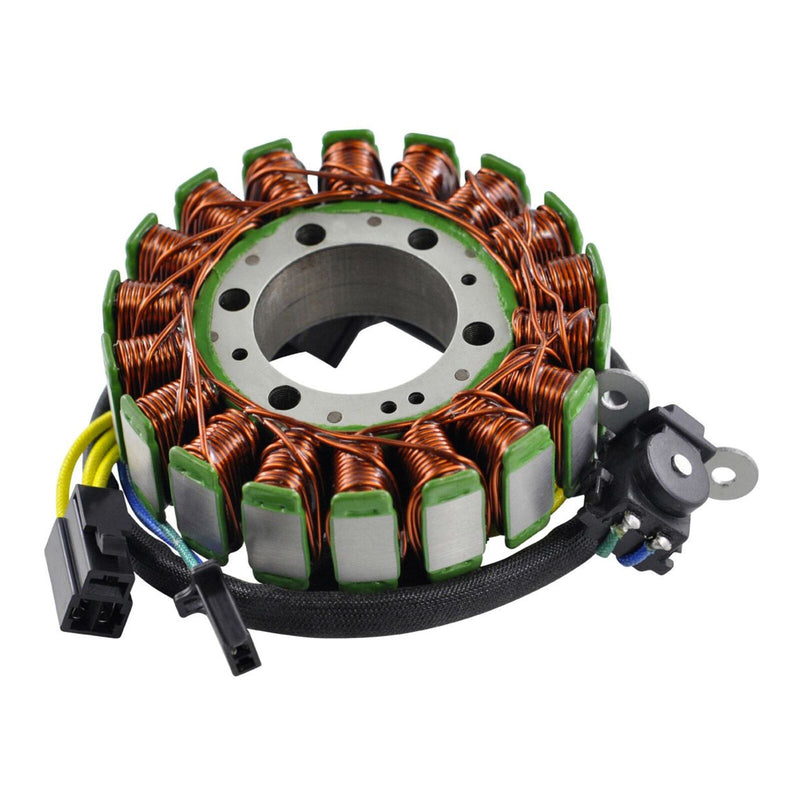

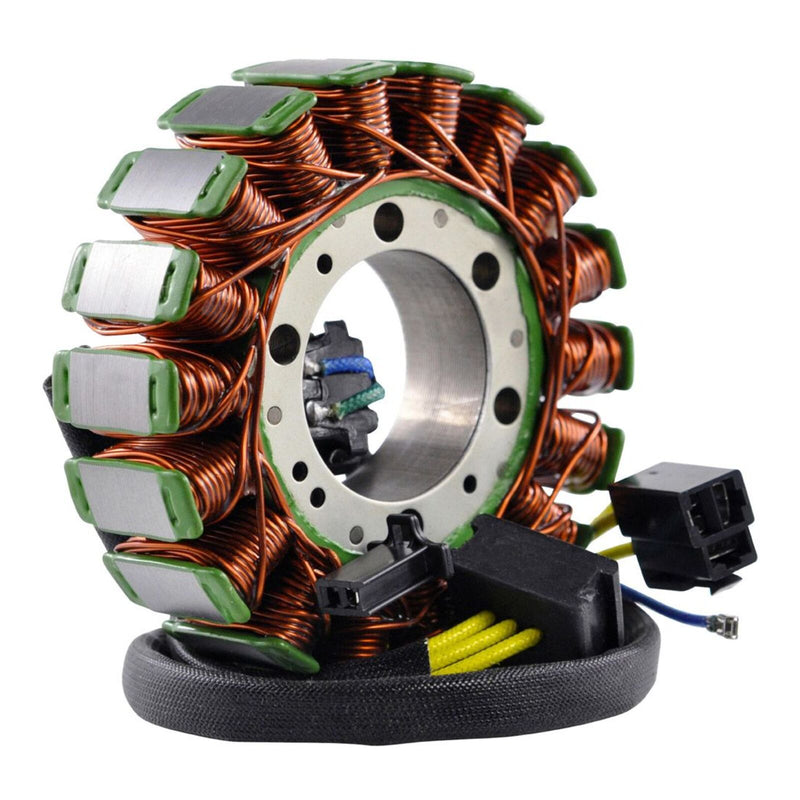

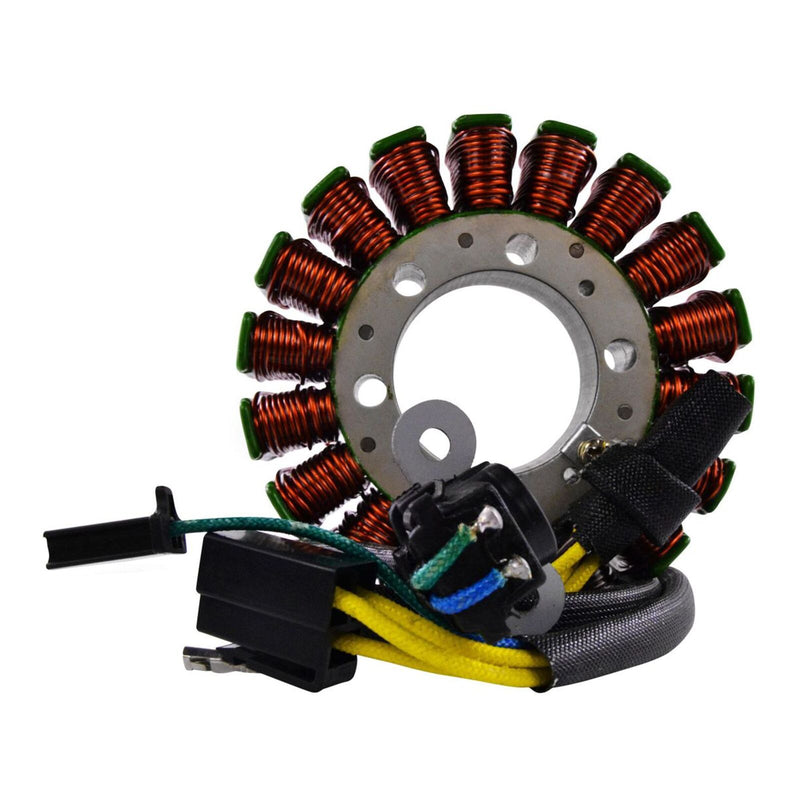

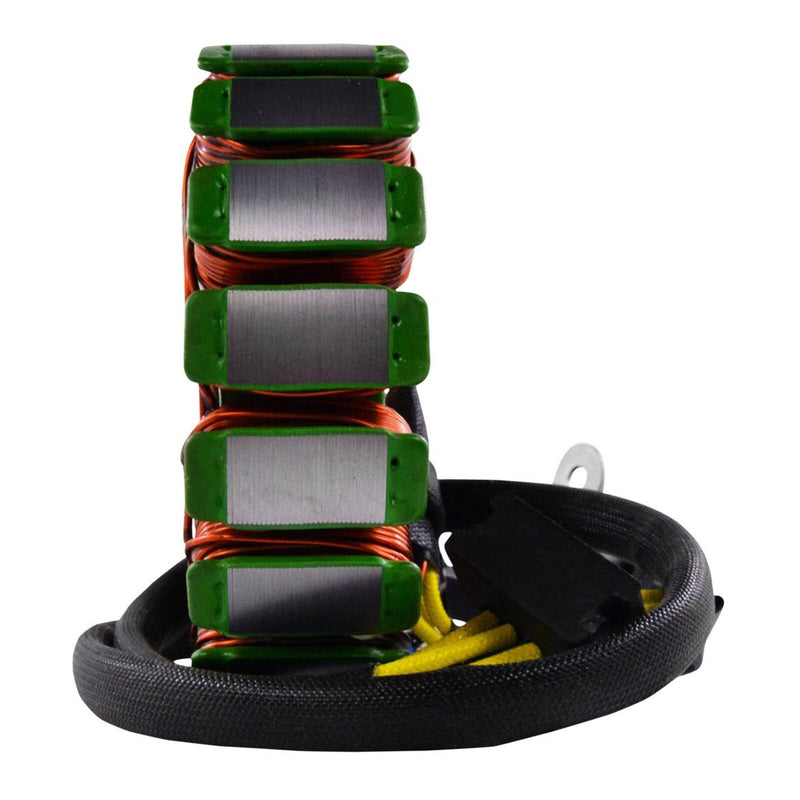

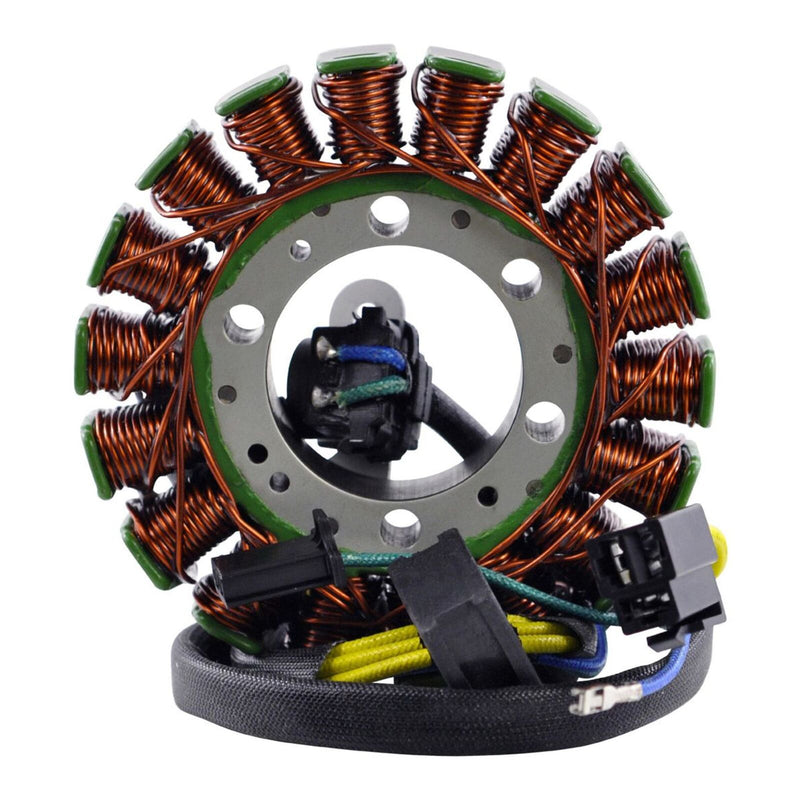

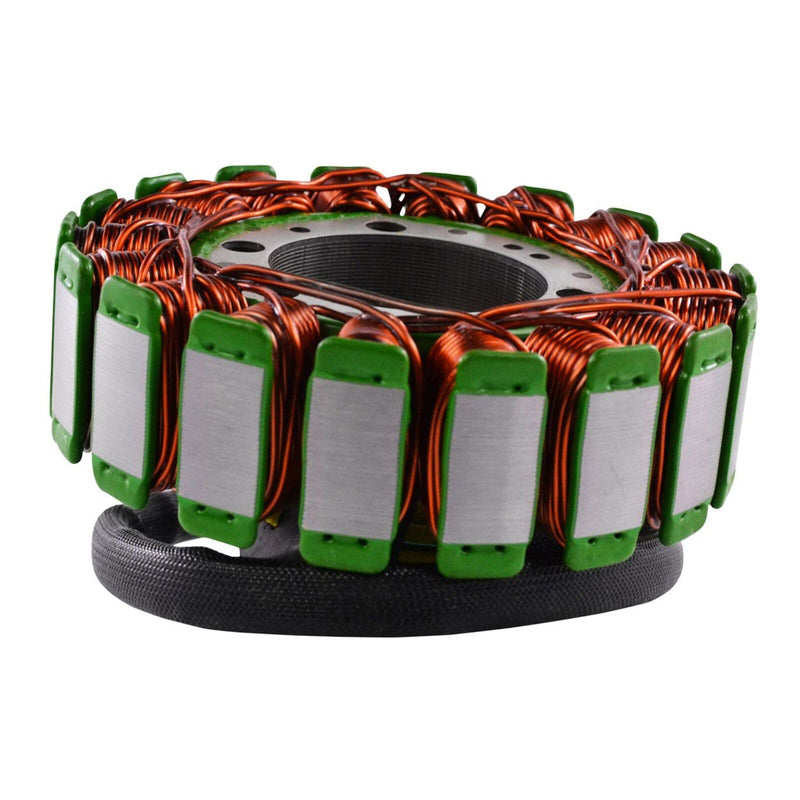

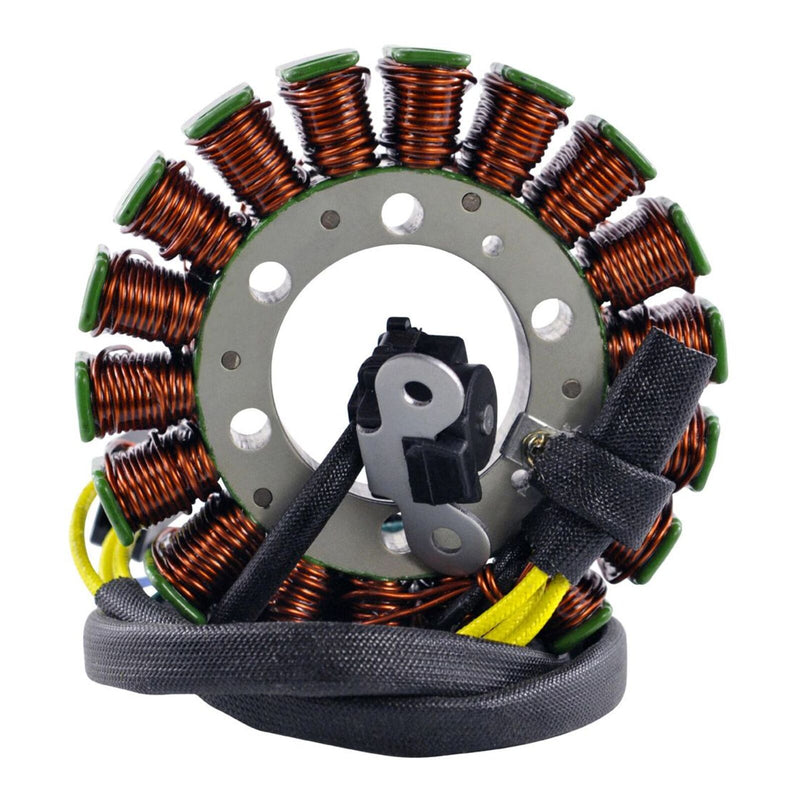

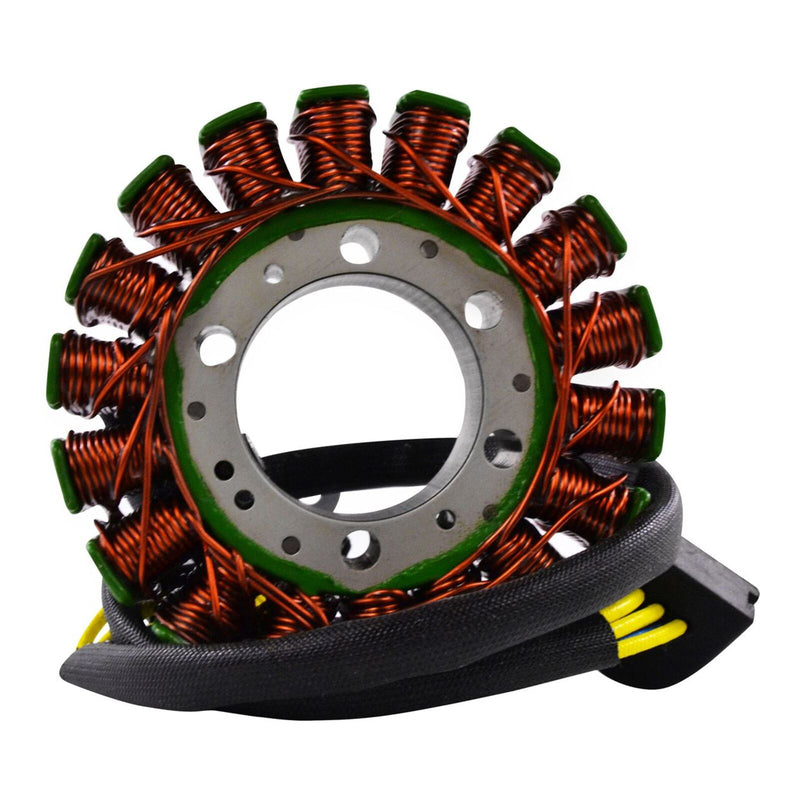

Direct replacement for your original unit.
Features:
- Plug-and-play, direct fit, easy installation.
- Highest-grade lamination materials.
- Highest-grade copper windings, resistant to 200°C.

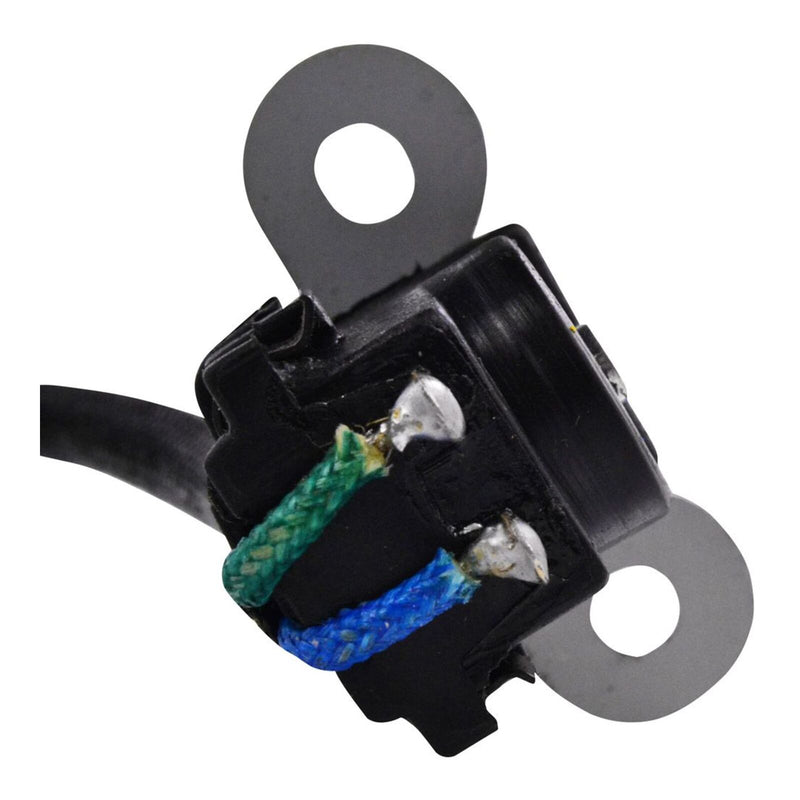

- Pick-up pulsar coil included.

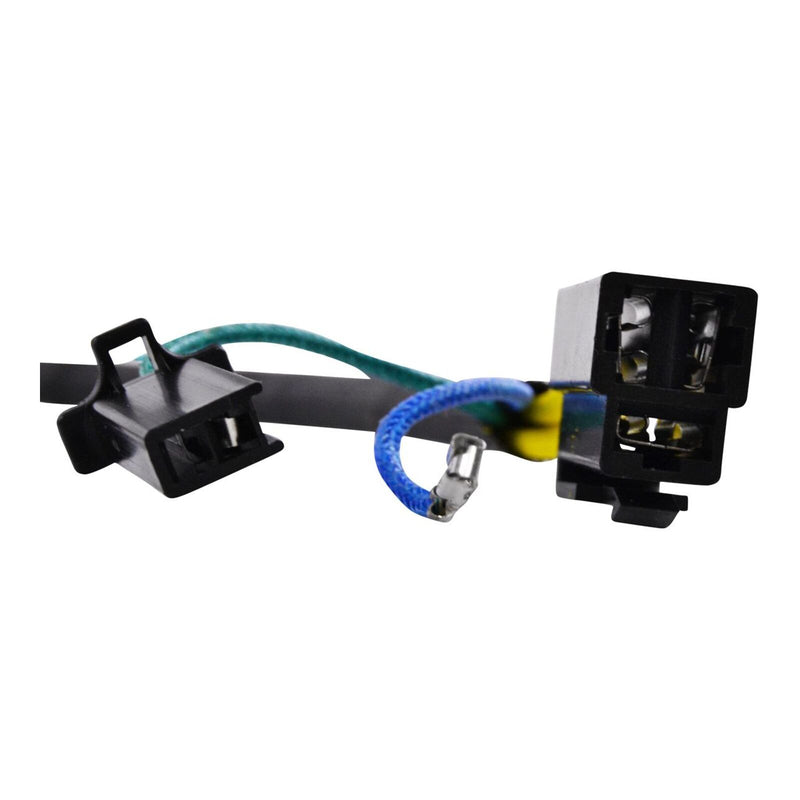

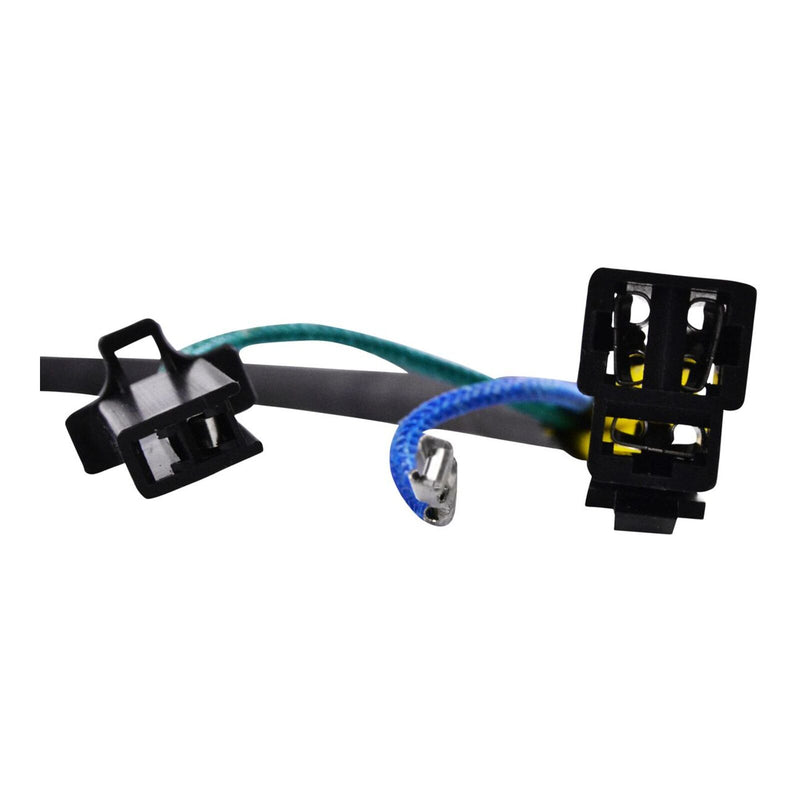

- Connector included.
- Rubber grommet included.
- All products shipped are tested.
Dimensions:
- Interio r diameter: 42 mm
- Exterior diameter: 106 mm
- Thickness: 22 mm
- Length of wires (stator to grommet): 100 mm
- Length of wires (grommet to plug): 490 mm
- Length of pickup coil's wire (to grommet): 55 mm
Other Specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
Wire-to-Wire Resistance:
- Alternator: Yellow to Yellow = 0
