SKU: RMS030103087

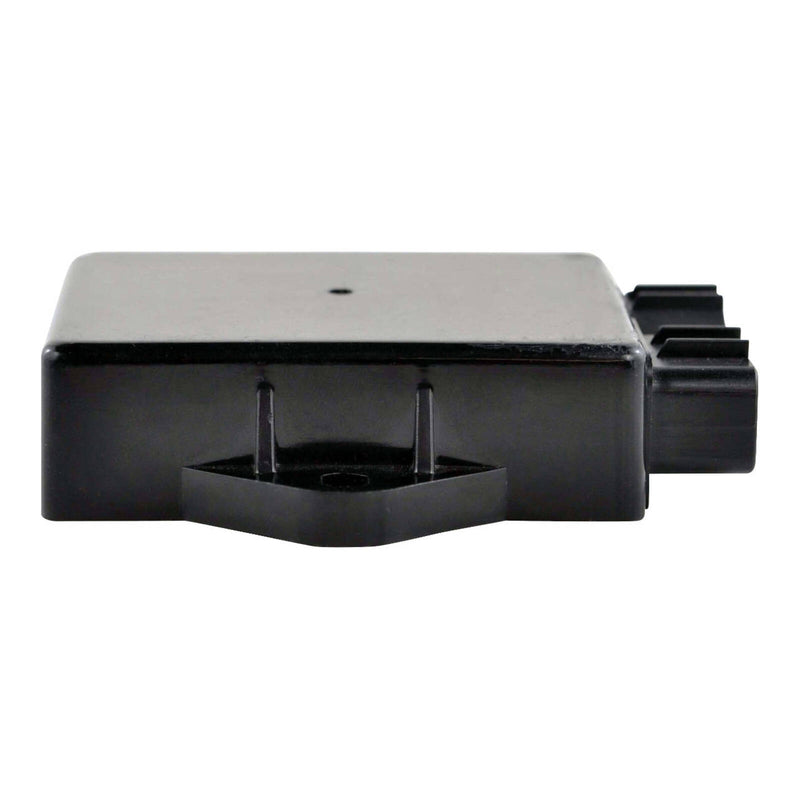

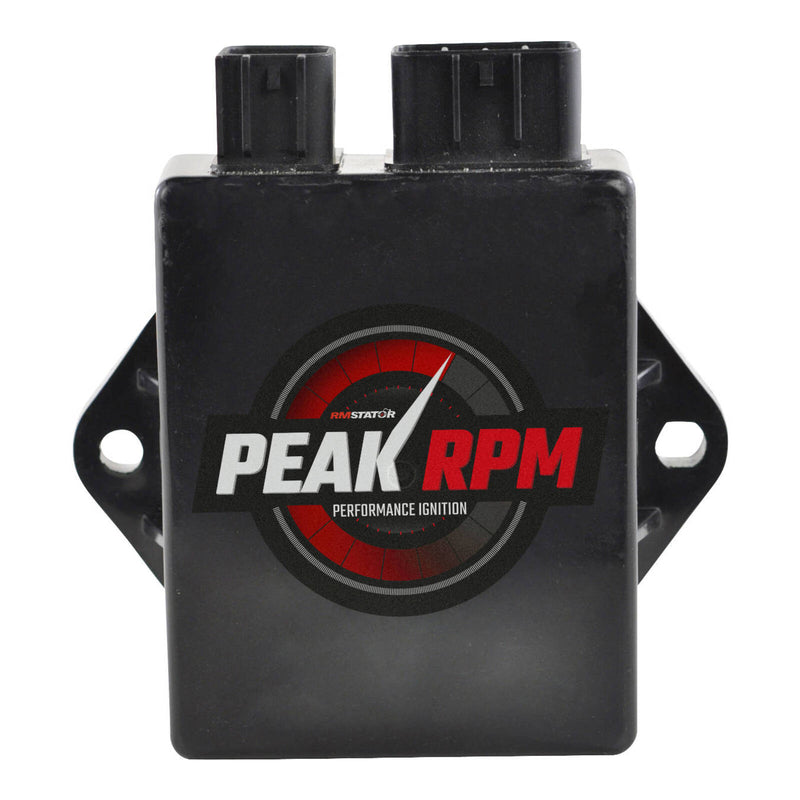

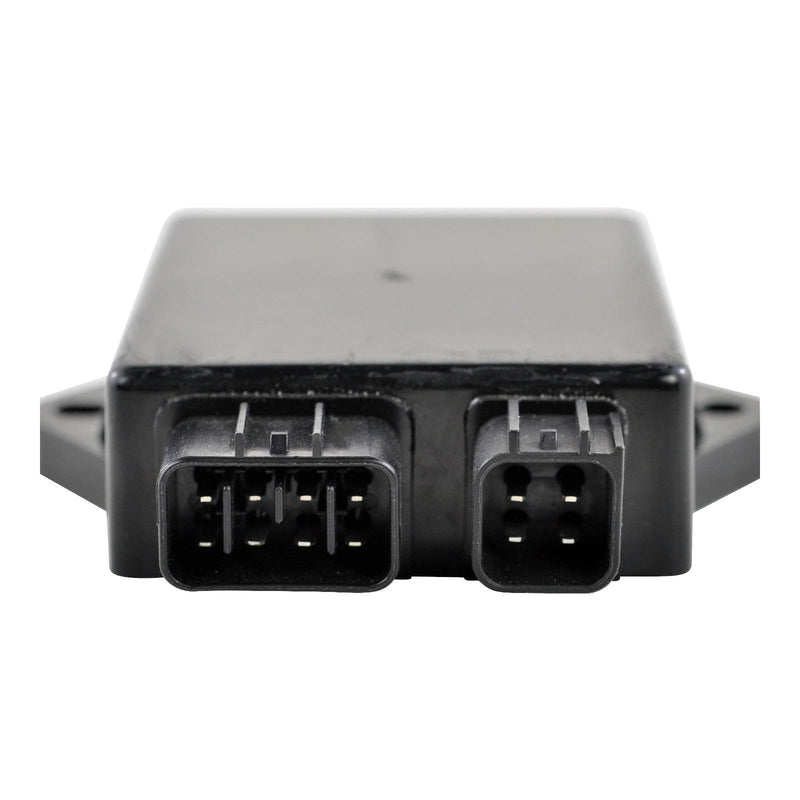

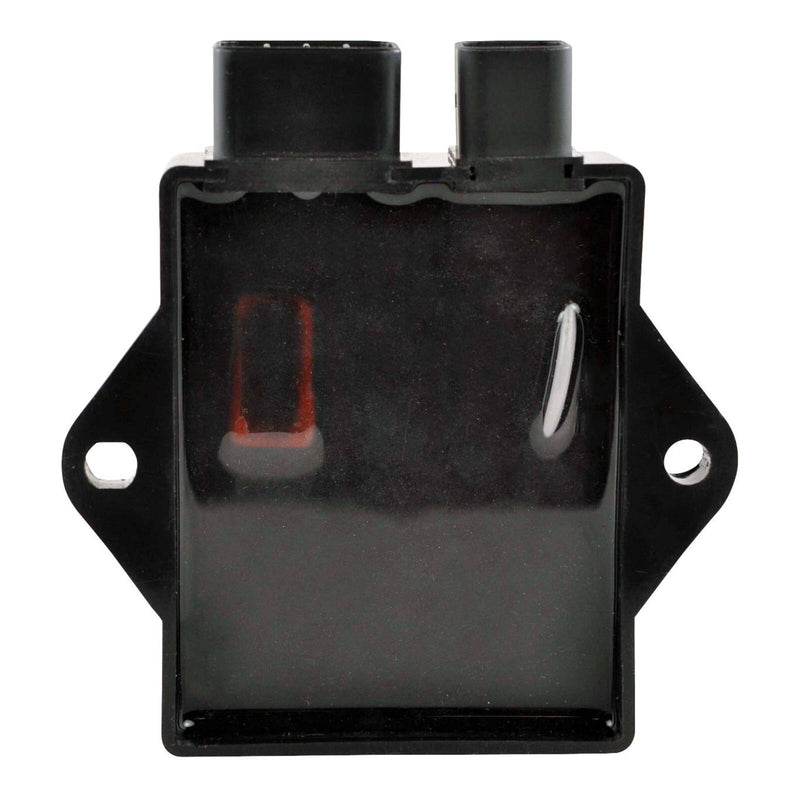

CDI BOX YAMAHA OUTBOARD RFR FITMENTS (RMS030-103087)

Vendor RMSTATOR
Regular price $379.90
Sale price $379.90 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Plug-and-play, aftermarket replacement CDI box for Yamaha outboard motors from RM Stator. Refer to fitment guide for models.



Dimensions:

  • Width: 150mm
  • Length: 156mm
  • Height: 26mm
  • Fixation holes, centre to centre: 143mm



Other specifications:

  • Number of plugs: 2
  • Number of pins: 12



Details:

  • RM Stator's PeakRPM technology provides a more aggressive timing curve for increased throttle response
  • Ride at full throttle with their application-specific CDI box that raises the rev limiter by 1000 RPM
  • Enjoy fast and easy installation with their plug and play design and included dielectric connector grease
  • OEM-grade electronic components and printed circuit boards for long-term reliability and performance
  • 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying
