SKU: RMS030100048

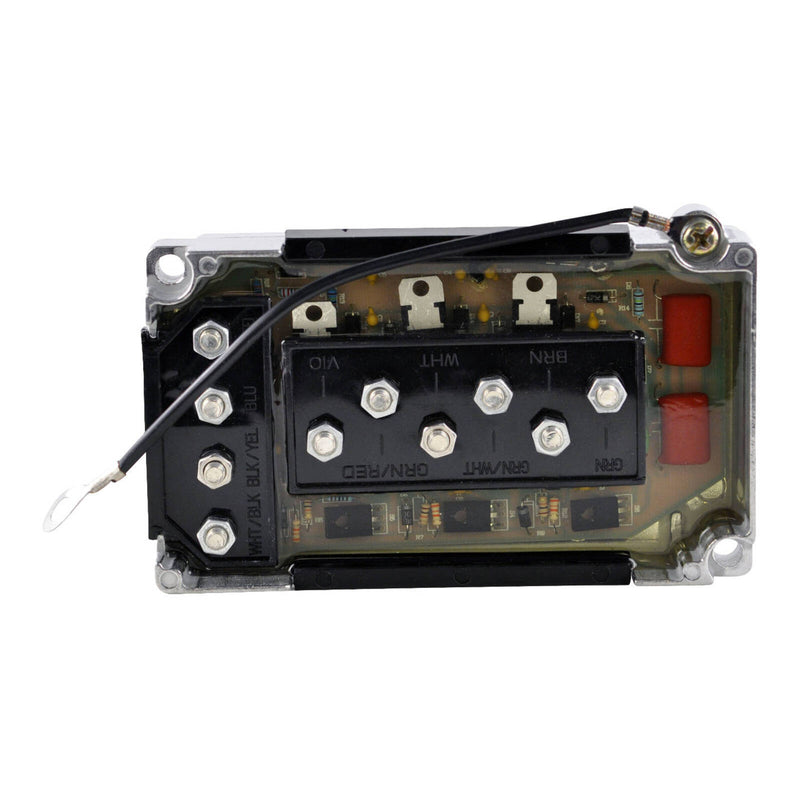

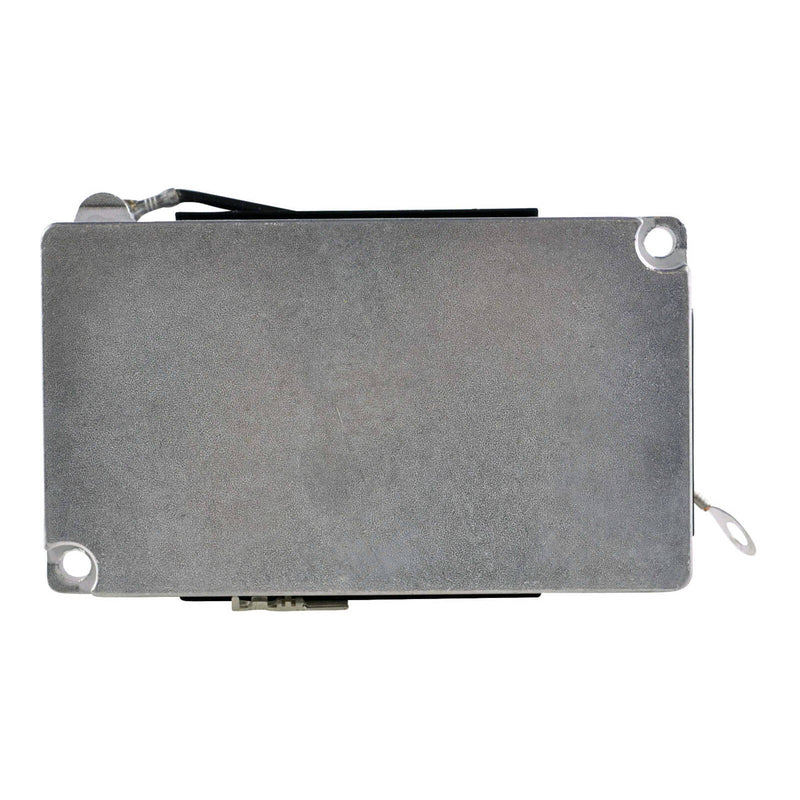

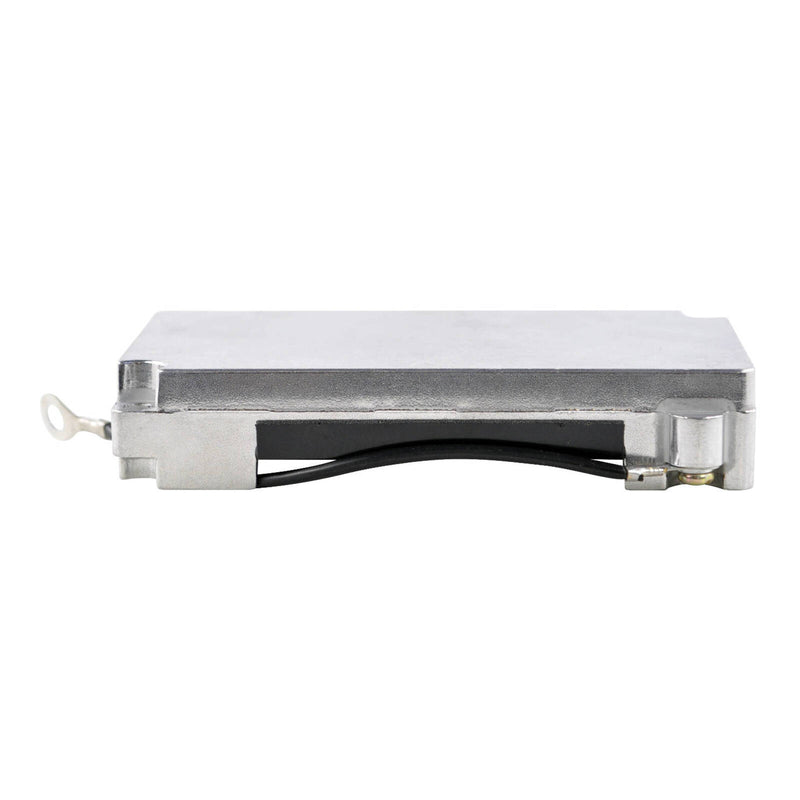

CDI BOX MERCURY OUTBOARD RFR FITMENTS (RMS030-100048)

Vendor RMSTATOR
Regular price $379.90
Sale price $379.90 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Plug-and-play, aftermarket replacement CDI box for Mercury outboard motors from RM Stator. Refer to fitment guide for models.



Dimensions:

  • Width: 79mm
  • Length: 136mm
  • Height: 26mm
  • Fixation holes, centre to centre: 143mm



Installation:

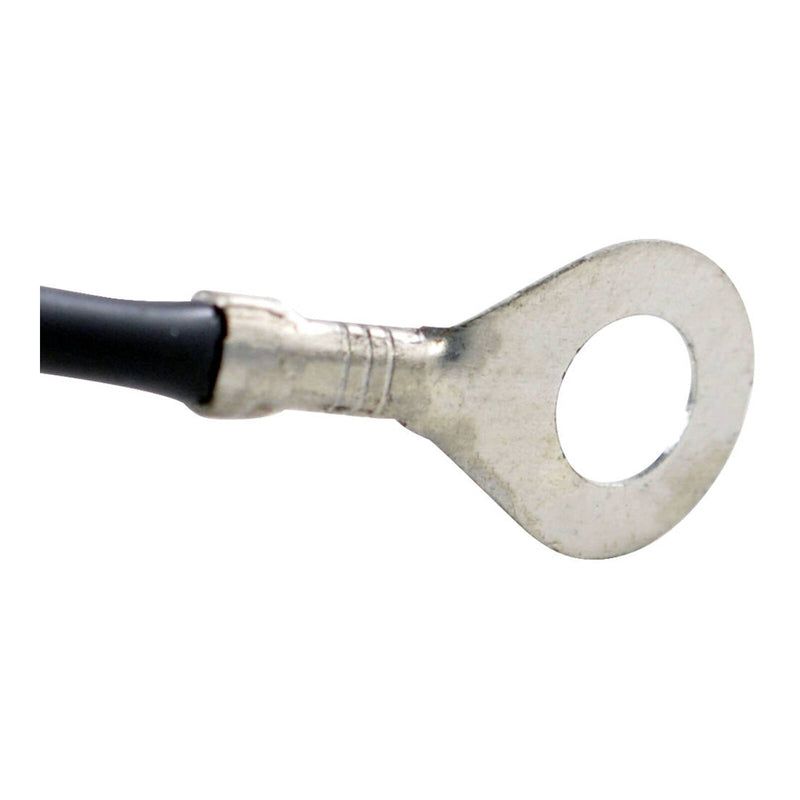

  • If the Black Ground Wire is Not Already Connected to the CDI Box, fasten to One of the 4 Mounting Holes on the Outside of the Box
  • Fasten the Other End of This Black Wire to a Good Ground Spot on the Engine.
  • If the Engine Uses an Orange Colored Lead That is Connected to the Box, Connect This to the "Black/Yellow" Stud on the New Box.
